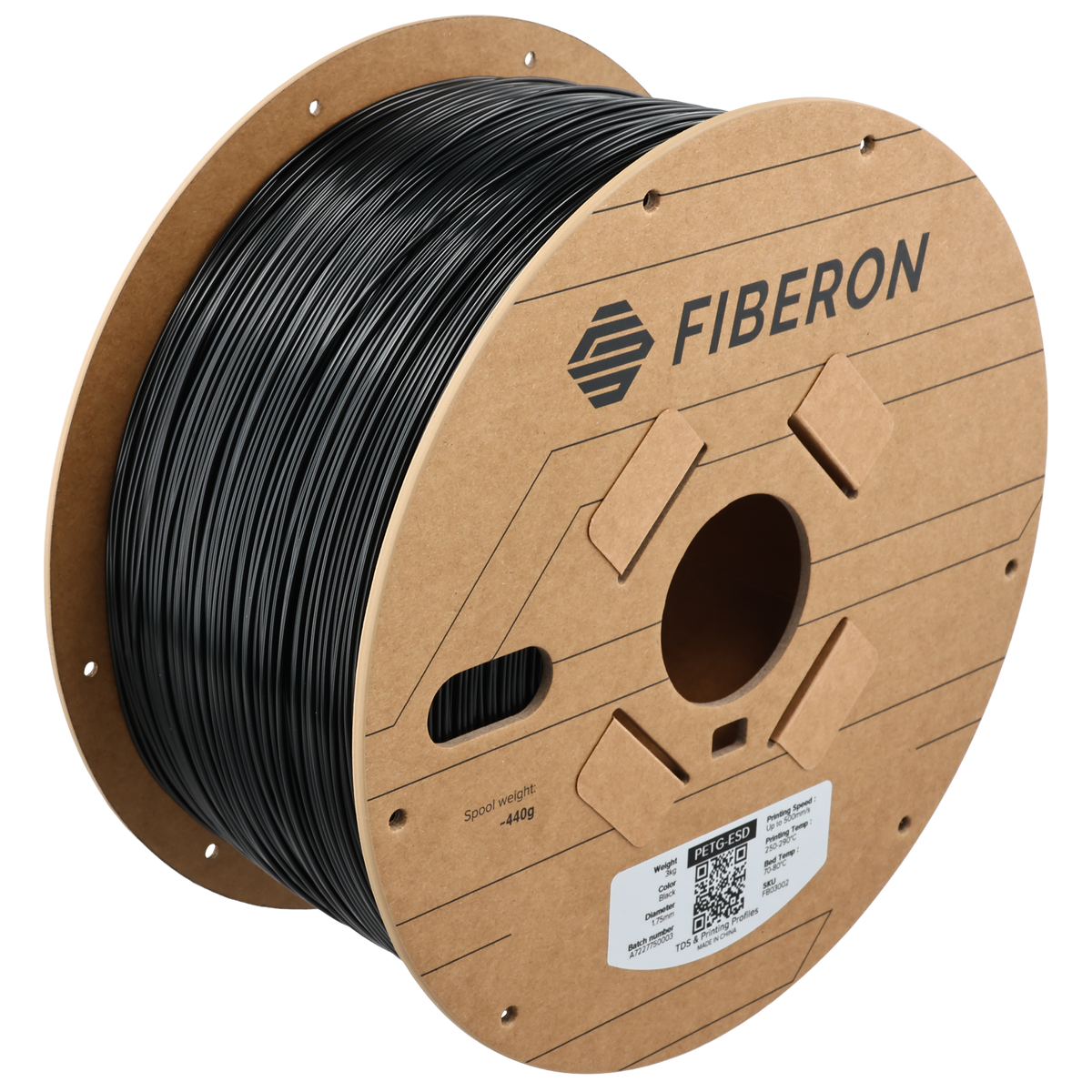

Fiberon™ PETG-ESD
3kg / Nero
€224,99 EUR
Skip to product information
Fiberon™ PETG-ESD
Fiberon™ PETG-ESD
€224,99 EUR
Taxes included.
Shipping calculated at checkout.
Italy: free standard shipping on orders over €49.90
Fiberon™ PETG-ESD – Antistatic Protection for Electronics
Fiberon™ PETG-ESD is a conductive PETG filament for 1.75mm FDM printers, designed for applications in the electronics industry where electrostatic charge dissipation is required. The material is loaded with carbon nanotubes, which give it very low surface resistivity while maintaining the typical strength and toughness of PETG. It is suitable for creating jigs, fixtures, containers, and supports for electronic components sensitive to electrostatic discharge.
Key Features
- ESD Dissipation: loaded with carbon nanotubes for controlled surface resistivity according to ANSI/ESD STM11.11 standard
- Good toughness: maintains the typical impact resistance of PETG even after conductive loading
- Ease of printing: similar processability to standard PETG, no need for a heated chamber
- Suitable for electronic production environments: ideal for equipment in contact with sensitive boards and components
Technical Specifications
| Parameter | Value |
|---|---|
| Diameter | 1.75 mm |
| Density | 1.24 g/cm³ |
| Tensile Strength (XY) | 59.9 MPa |
| HDT (0.45 MPa) | 133.7 °C |
| Vicat Softening Temperature | 232.6 °C |
| Surface Resistivity (at 270°C, ANSI/ESD STM11.11) | ~4.7 × 10⁵ Ω |
Printing Settings
| Parameter | Value |
|---|---|
| Nozzle Temp | 250–290 °C |
| Bed Temp | 70–80 °C |
| Speed | 30–300 mm/s |
| Cooling fan | 0–50% |
| Nozzle | Hardened nozzle recommended due to material abrasiveness |
Printer Compatibility
Compatible with most 1.75mm FDM printers equipped with an all-metal hotend; due to the abrasive nature of the material, a hardened steel nozzle is recommended.
Applications
- Jigs and fixtures for electronic assembly lines
- Containers and trays for ESD-sensitive components
- Supports and housings for PCBs
- Benchtop equipment for electronics laboratories
Domande frequenti
Cosa significa che il Fiberon™ PETG-ESD è dissipativo elettrostatico?
Il materiale è formulato per dissipare le cariche elettrostatiche, riducendo il rischio di scariche che potrebbero danneggiare componenti elettronici sensibili.
Materia Polymers spedisce in tutta Italia?
Sì, spediamo in tutta Italia con spedizione standard gratuita a partire da €49,90 di spesa.
